Calculation of a SatCom Doppler Frequency

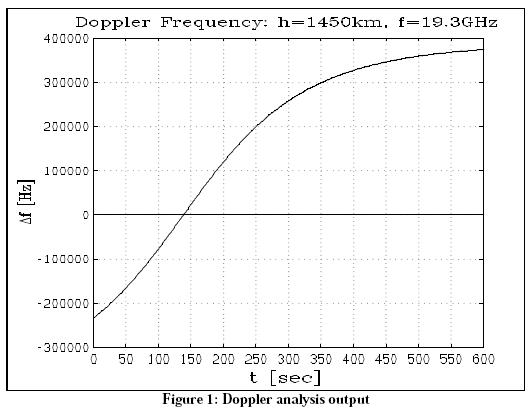

The plot below shows the analysis of the Doppler frequency for a satellite passing overhead.
% Demo: Doppler frequency of satellite
%
% This demo sets up a satellite passing overhead and
% computes and displays the doppler frequency
%
removeAll;
setSimEpoch(2002,3,26,12,0,0);
% Start time for simulation
setSimStepSize(1);
addEpoch('Teledesic',2002,3,26,12,0,0);
% Epoch group of satellite
addSatellite('S1a',7728,0,90,9,0,0,'Teledesic');
% Define satellite
setSimTime(0)
% Initialize simulation
g = GeoPosition(3);
% Get geographic position of satellite
g(1:2) = g(1:2)*r2d;
% Convert from radians to degrees
addStation('E1',I_earth,45,g(1)+7.5,g(2),0);
% Add station 7.5 deg north of satellite
t = 0:1:600;
% Define simulation time vector
rvec=zeros(size(t));
% Initialize vector of relative velocities
j = 0;
for i = t,
j = j+1;
stepSim;
% Advance simulation by 1 sec
[d,r,a,e,v] = RelPosition('E1'); % Get distance, rel velocity, ...
rvec(j) = r(2); % Store rel velocity in array
endfor
erase
window('111');
plot(t,rvec*19.3e9/cLight, 'grid');
% plot rel velocity, converted to doppler f
title('Doppler Frequency: h=1450km, f=19.3GHz')
ylabel('df (Hz)',
'Fl s ls');
xlabel('t [sec]')
